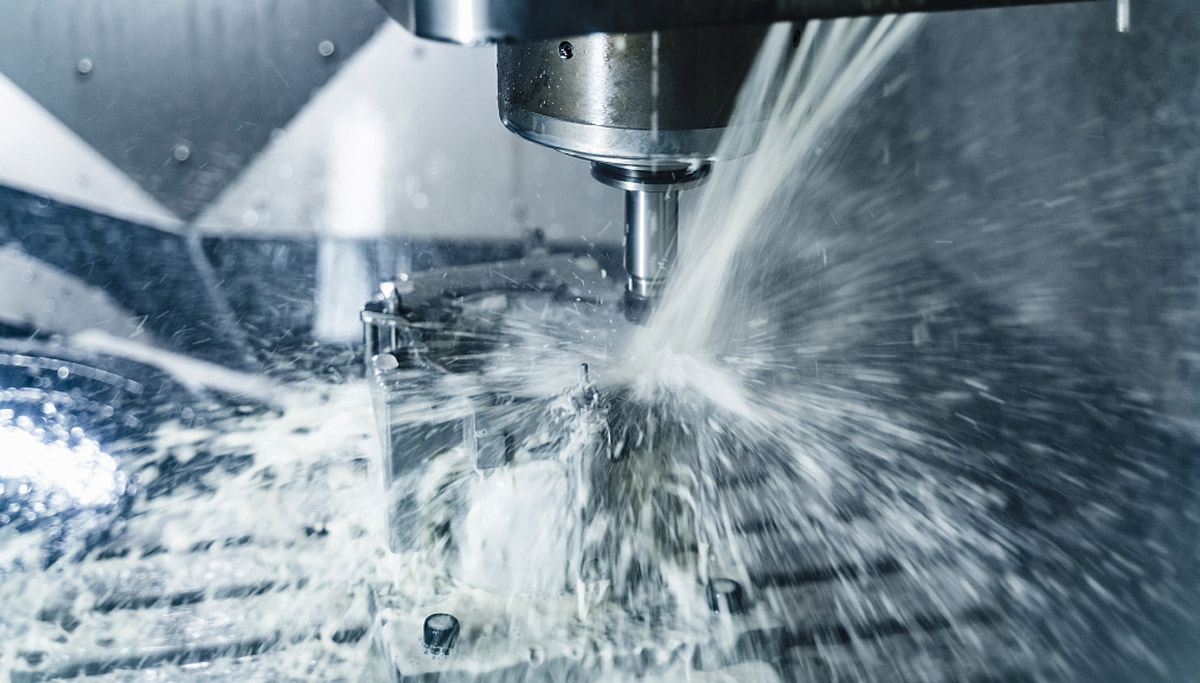

Vertical milling

Our vertical machining centers can process a wide range of precision parts and small workpieces: Due to their vertical tool orientation and small working area, vertical machining centers are particularly suitable for the machining of small parts to medium-sized workpieces. Whether prototyping or series production, vertical milling can meet a variety of machining needs.

Equipment Specifications:

● Max. X-axis stroke       1,100 mm

● Max. Y-axis stroke       560 mm

● Max. Z-axis stroke       510 mm
● Max. workpiece height    630 mm

● Max. workpiece weight   1,000 kg

● Max. workpiece length   1,400 mm
● Max. workpiece width     560 mm

Positioning accuracy of 6 µm in all axes

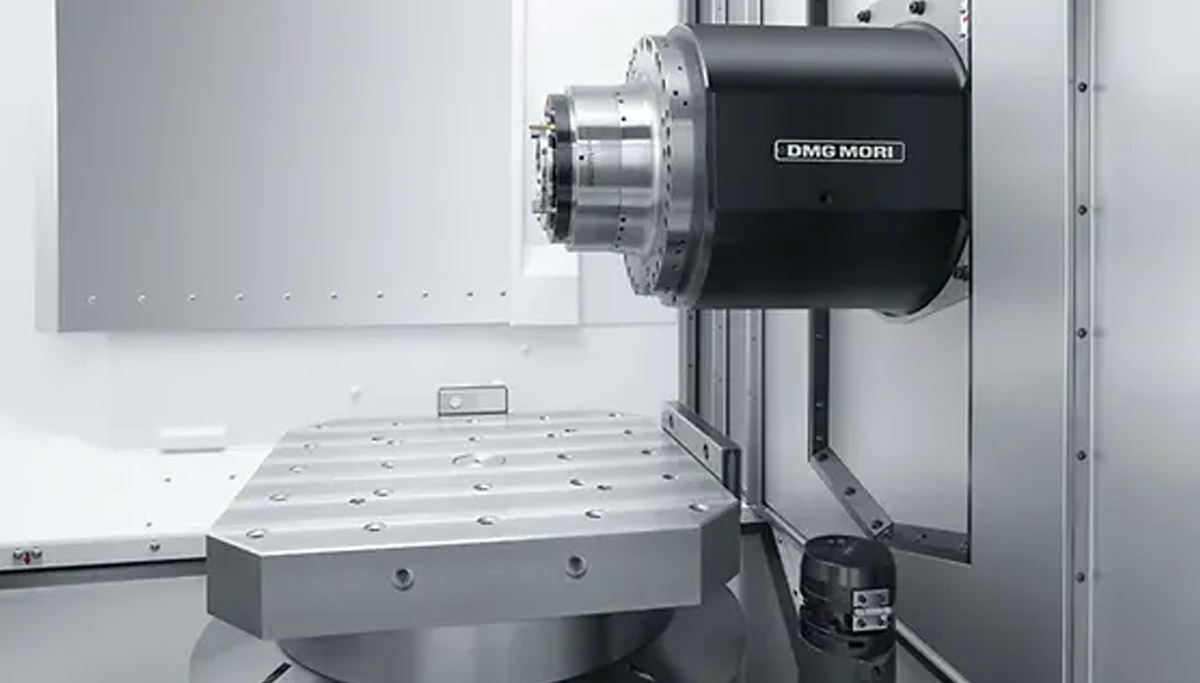

Horizontal milling

Horizontal milling refers to a process in which the tool is milled parallel to the workbench. Horizontal machining centers are suitable for processing various workpiece sizes and shapes. From small parts to large workpieces, horizontal milling can meet machining needs of varying sizes and complexity.

Equipment Specifications:

● Max. X-axis stroke  800 mm

● Max. Y-axis stroke  800 mm

● Max. Z-axis stroke  880 mm

● Max. workpiece diameter  800 mm

● Max. workpiece height   1,100 mm

● Max. workpiece weight   1,000 kg

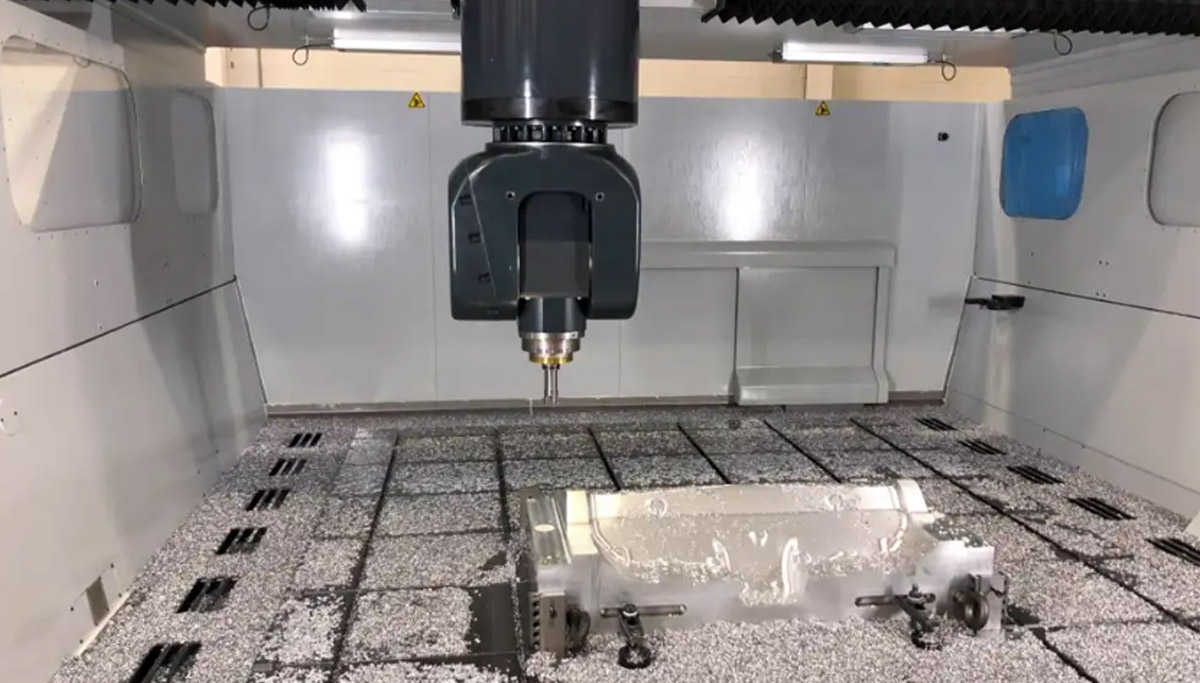

Gantry milling

Our gantry milling machining center is a large CNC machine tool with powerful cutting capabilities and high-precision machining effects.

Whether you need to machine large parts or parts with complex geometries, our gantry milling machining centers can provide excellent machining capabilities and high-quality machining services.

Equipment Specifications:

● Max. X-axis stroke  2100 mm

● Max. Y-axis stroke  1600 mm

● Max. Z-axis stroke  800 mm

● Max. workpiece diameter  1600 mm

● Max. workpiece height   800 mm

● Max. workpiece weight   2,500 kg

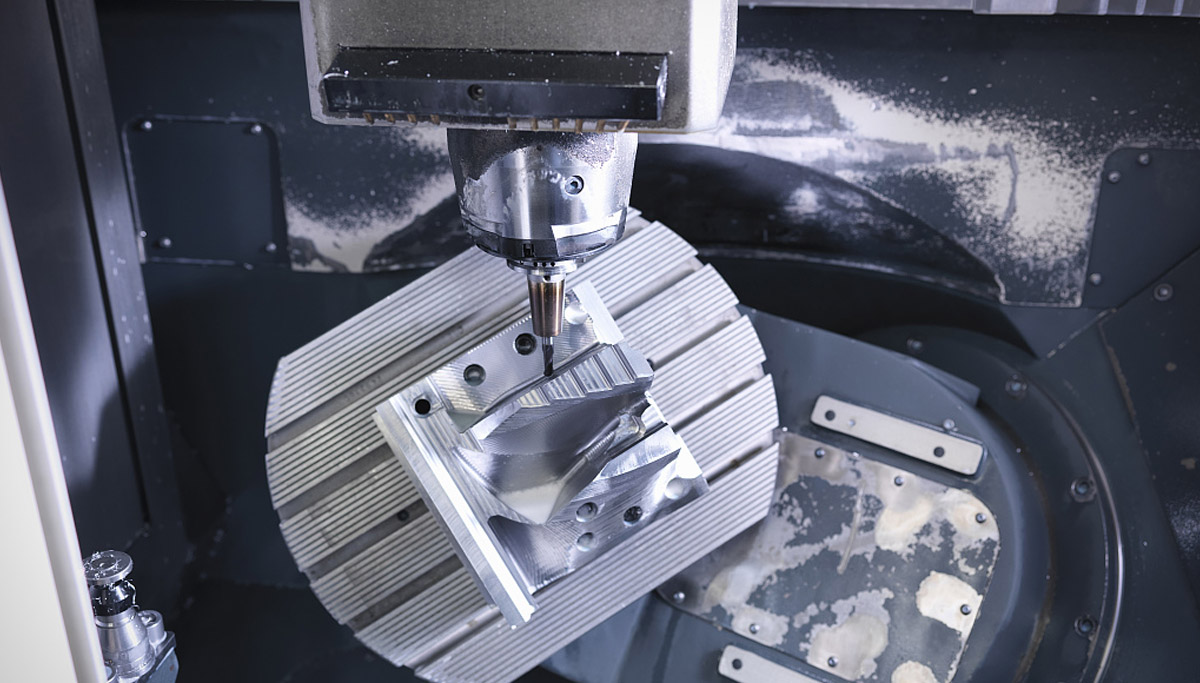

Five-axis milling

We provide 5-axis simultaneous machining services. Through our equipment and professional team, we can achieve high-precision machining of complex parts.

The 5-axis simultaneous machining method can cut at different angles and directions to achieve more complex geometric shapes and curved surface processing. Through 5-axis linkage, we can achieve high-precision processing of parts with complex geometric shapes. Cutting multiple surfaces at the same time greatly improves processing efficiency and production efficiency.

Equipment Specifications:

● Max. X-axis stroke  950 mm

● Max. Y-axis stroke  850 mm

● Max. Z-axis stroke  650 mm

● Max. workpiece diameter  1,040 mm

● Max. workpiece height   590 mm

● Max. workpiece weight   1,000 kg

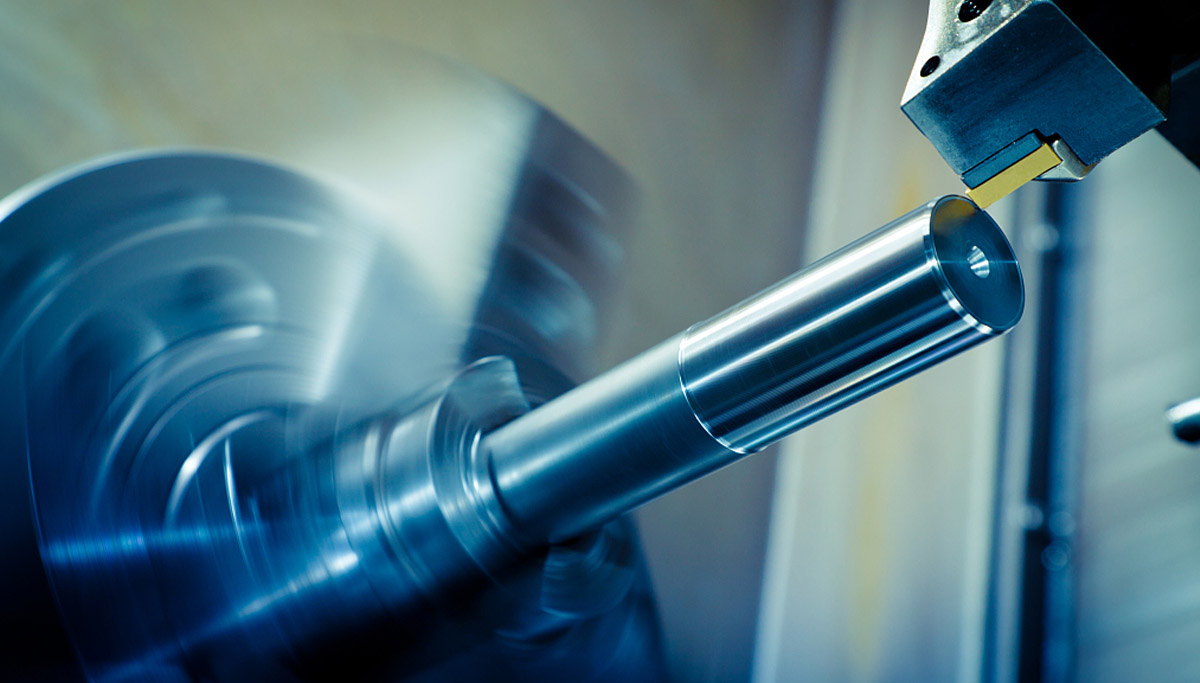

CNC turning

We provide CNC turning services, and through our equipment and professional team, we are able to achieve high-precision and efficient turning processes.

Our equipment is equipped with precision CNC systems and high-stability cutting tools, which can achieve high-precision turning processing. Whether it is diameter size, roundness or surface quality requirements, we can provide high-precision machining that meets customer needs.

● Maximum workpiece diameter 700 mm

● Maximum workpiece length 1,300 mm

● Maximum bar diameter 127 mm

● Max. X-axis stroke 435 mm

● Max. Y-axis stroke 160 mm

● Max. Z-axis stroke 1,300 mm

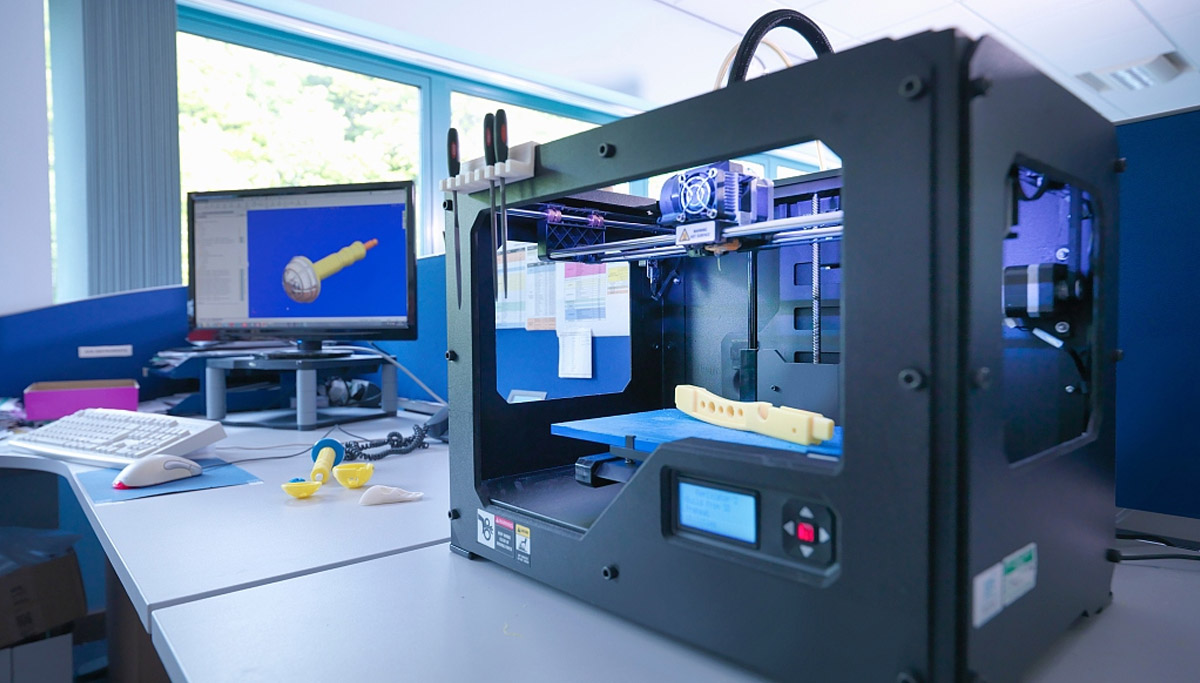

3D printing

We provide 3D printing services. 3D printing is a rapid prototyping technology that can directly transform digital 3D models into physical entities. By stacking materials layer by layer, we are able to build complex geometries and enable individual custom manufacturing.

Whether it is prototyping, product development or low-volume production, we are able to provide high-quality 3D printing services based on your needs.

Print area:

● Max  600 x 600 mm

● Max  1500 x 300 mm
